Improving Operational Efficiency Through Automated MSDTC Network Configuration Monitoring

Key Takeaways:

• BizTalk Message Processing
• Role of MSDTC in BizTalk Environment
• Importance to keeping the MSDTC configuration health
• Automated Task to Monitor the MSDTC network configuration

BizTalk Message Processing

BizTalk Message Transaction refers to the processing and reliable delivery of messages between systems using Microsoft BizTalk Server. A message transaction in BizTalk can involve receiving, processing, and sending messages in a controlled, fail-safe manner, often involving orchestration, pipelines, and adapters.

Types of BizTalk Transactions

• All steps must complete successfully or all are rolled back.
• Used when operations must occur as a single unit of work.
• Example: Updating a database and sending a message—both must succeed or both fail.

• Used for business processes that span hours/days (e.g., waiting for a response).
• Supports compensation logic instead of full rollback.
• Example: Sending a purchase order and waiting for an acknowledgment.

Role of MSDTC in BizTalk Environment

The Microsoft Distributed Transaction Coordinator (MSDTC) service is responsible for managing and coordinating transactions across multiple Windows servers, such as BizTalk, SQL Server, and web servers hosting WCF services.

In BizTalk environment where multiple servers perform different roles, BizTalk relies on MSDTC to maintain transactional consistency, ensuring that all operations complete as part of a single, reliable transaction.

MSDTC (Microsoft Distributed Transaction Coordinator) maintains atomic transactions by ensuring the “all-or-nothing” principle across multiple resource managers (such as SQL Server, BizTalk, file systems, or WCF services) even when they span multiple servers.

Here’s how MSDTC ensures atomicity:

MSDTC uses the two-phase commit protocol to coordinate distributed transactions:

• Phase 1: Prepare
• MSDTC asks all involved systems (resource managers) if they are ready to commit the transaction.
• Each participant does its internal checks and responds with a “yes” (ready to commit) or “no” (abort).
• Phase 2: Commit or Rollback
• If all participants respond with “yes,” MSDTC sends a commit instruction to all.
• If any participant says “no,” MSDTC instructs all to roll back the transaction.

• If all steps succeed, the transaction is committed everywhere — maintaining atomicity.
• If any step fails, the transaction is rolled back in all systems — leaving no partial updates.

• MSDTC maintains logs so that in the case of a system failure, it can resume or roll back incomplete transactions when the system is restored.

Suppose BizTalk receives a message, processes it, and stores data in SQL Server while it also invoking a WCF service. MSDTC ensures that:

• The message is only marked as successfully processed if both the SQL and WCF operations succeed.
• If the WCF service fails, the SQL operation is rolled back, preserving data integrity.

MSDTC guarantees that all parts of a distributed transaction succeed, preserving the atomicity across systems.

Importance to keep the MSDTC configuration health

Maintaining a healthy MSDTC configuration is critical in a BizTalk Server environment, because it underpins the reliable execution of distributed transactions across multiple resource managers such as SQL Server, MSMQ, and other BizTalk components.

• Ensures Transaction Integrity
• Supports Orchestration and Messaging Engine Reliability
• Vital for Clustered or Multi-Server BizTalk Environments
• Failure Symptoms Indicate Serious Issues
• Security and Trust Configuration is Crucial

Monitor the MSDTC network configuration

With BizTalk360, you can leverage Automated Tasks to proactively monitor and maintain the health of your MSDTC configuration.

Automate MSDTC Health Monitoring!

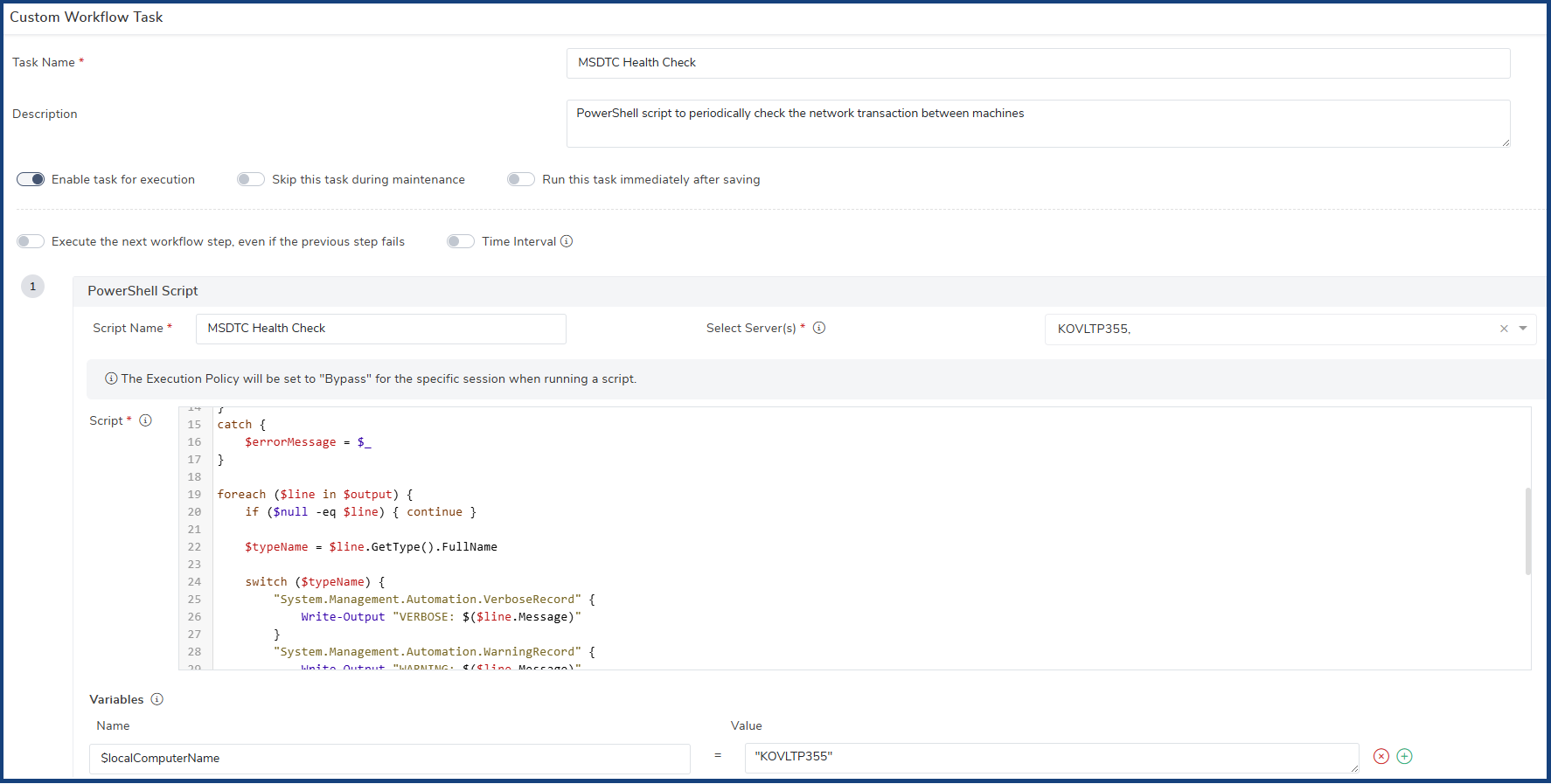

Set up an Automated Task in BizTalk360 that executes a PowerShell-based health check using the Test-DTC command. This enables you to continuously verify the MSDTC connectivity and configuration between BizTalk and SQL Servers, helping you identify and resolve issues before they impact your environment.

Note: If your environment includes multiple BizTalk and SQL Servers, create separate custom workflow steps to verify MSDTC connectivity between each unique pair of servers.

The Test-Dtc PowerShell command is used to validate whether two machines—such as a BizTalk Server and a SQL Server—can successfully participate in networked transactions, ensuring proper MSDTC connectivity and configuration.

What Does It Validate?

• Ensures firewall rules are correctly configured to allow DTC traffic.
• Verifies MSDTC settings, including Inbound/Outbound transaction permissions and Remote access enablement.
• Confirms that both machines can communicate with each other (ping test).
• Simulates actual transaction flow between the two systems using Pull and Push propagation methods to test end-to-end MSDTC communication.

The Test-Dtc command provides clear insights into the MSDTC configuration status. It generates warnings when certain settings or firewall rules are disabled and throws errors if transaction propagation fails. These outputs help identify the potential issues such as:

• Network restrictions preventing proper communication
• Incorrect or incomplete MSDTC configuration
• Blocked endpoints due to firewall modifications

Note: You can download the PowerShell script to perform an MSDTC health check between two servers (e.g., BizTalk and SQL Server)

MSDTC health Notification

Configure the Automated Task to run at regular intervals based on your business requirements—for example, every 15 minutes or once an hour.

The integrated PowerShell script will execute at each scheduled interval to assess MSDTC health and can trigger notifications accordingly.

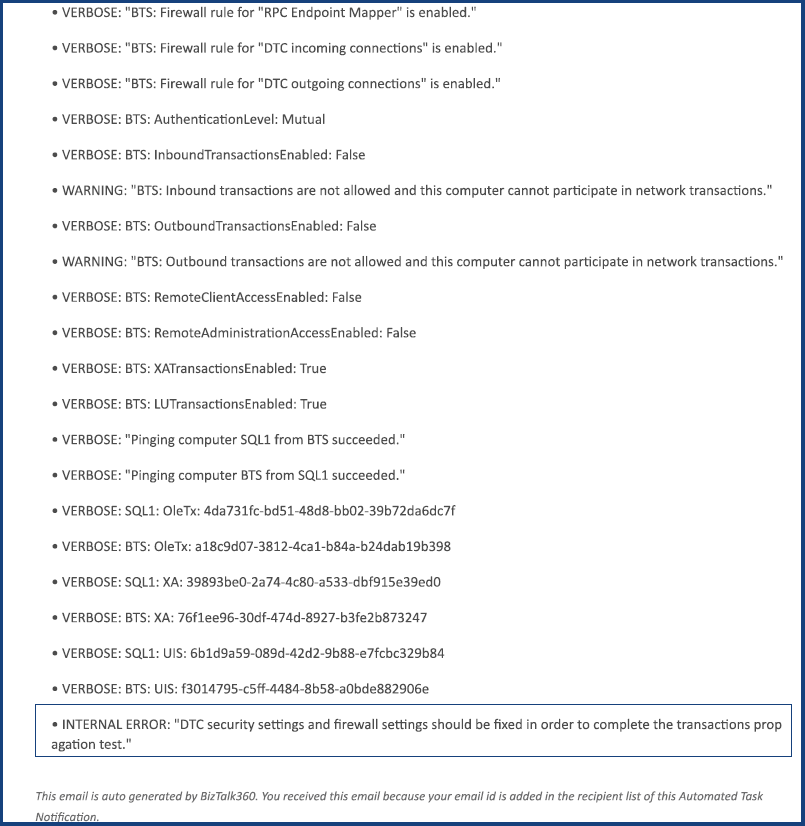

Failure Notifications

To receive alerts, simply customize the PowerShell script to send notifications when issues are detected.

By analysing the Failure Reasons and Warnings provided under Additional Information, you can quickly identify any problems that might be disrupting networked transactions between the servers.

Summary

Ensuring the health of MSDTC network configuration is vital for seamless BizTalk message processing, especially in distributed environments where transactions span multiple systems.

By automating the monitoring of MSDTC network configurations, teams can proactively detect and resolve issues before they impact business-critical processes. This not only minimizes downtime but also reduces the manual overhead on operations teams, enhancing overall efficiency and reliability.

Investing in such automation is a strategic step towards a more stable, secure, and responsive BizTalk infrastructure—enabling organizations to focus more on innovation and less on troubleshooting.
